Auto Packing Machine (pouch)
Technical Parameters
Bag Width | 80-250mm | 180-300mm |
Bag Length | 80-400mm | 120-500mm |
Packing Size | 10-2000g (depending on materials) | |
Packing Speed | 20-55bags/min (depending on materials) | |
Power | 3.75kw | |
Machine Weight | 1400kg | |
Dimension | 1700×1400×1500 | |
Detailed Introduction
Summary:
Automatic bag packing machine combined with the industry at home and abroad advanced packaging machinery structure characteristics and full automatic control system, belongs to the new generation of high-tech products.
The products are widely used in food, medicine, daily chemical, chemical, veterinary medicine (in line with GMP standards) and other industries and exported to the world.
Application:
1. Prefabricated bag type

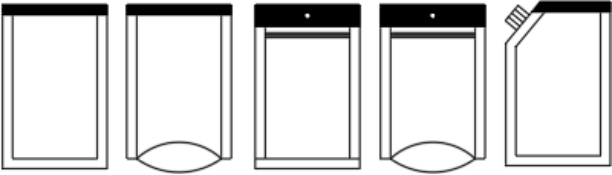

Suitable for different requirements of PE, PET, AL, CPP and other materials of prefabricated bags. Such as flat bag, self-supporting bag, zipper bag, suction mouth bag, organ bag, etc.
2. Materials type
According to different packing materials can choose different counting and filling devices, can pack a variety of materials, such as particles, powders, liquids and so on. Powder categories: milk powder, spices, cocoa, pesticides, veterinary drugs, washing powder, flour, etc.
Advantages and Characteristics
1. Automatic bag packaging machine to replace the traditional manual packaging, to achieve the automation of enterprise product packaging production, improve enterprise production efficiency, greatly reduce the cost of products.
2. The machine meets the hygienic standards of food processing machinery. GMP standard for veterinary medicine machinery. Parts and components in contact with materials and packaging bags on the machine are processed with materials that meet the hygiene requirements of food and drugs to ensure the hygiene and safety of food and drugs.
3. The packing range of the machine is wide. For multilayer composite film, single-layer PE, PP made of prefabricated bags, paper bags can be used. The finished packaging bag pattern is perfect, the sealing quality is good and the grade is high.
4. Gas control system adopts advanced PLC, with color Siemens touch screen, man-machine interface is friendly, easy to operate. Can quickly and easily adjust the width of the rack, packaging speed and other parameters.
5. The main motor is controlled by frequency conversion, and the frequency can be set freely in a certain range on the color touch screen according to actual needs.
6. The machine is equipped with an automatic detection device, which can detect the failure of air pressure, temperature controller, bag on the machine, bag mouth or not open. It can judge the state of the machine, control whether the machine is coded, whether the filling device is filled, and whether the hot sealing device is sealed, so as to avoid the waste of packaging materials and raw materials and greatly save the cost.
7. The machine mechanical structure design is compact, the transmission system layout is reasonable, easy maintenance.
8. Pure mechanical linkage, machine clamp hidden spring type, equipment mature and stable.

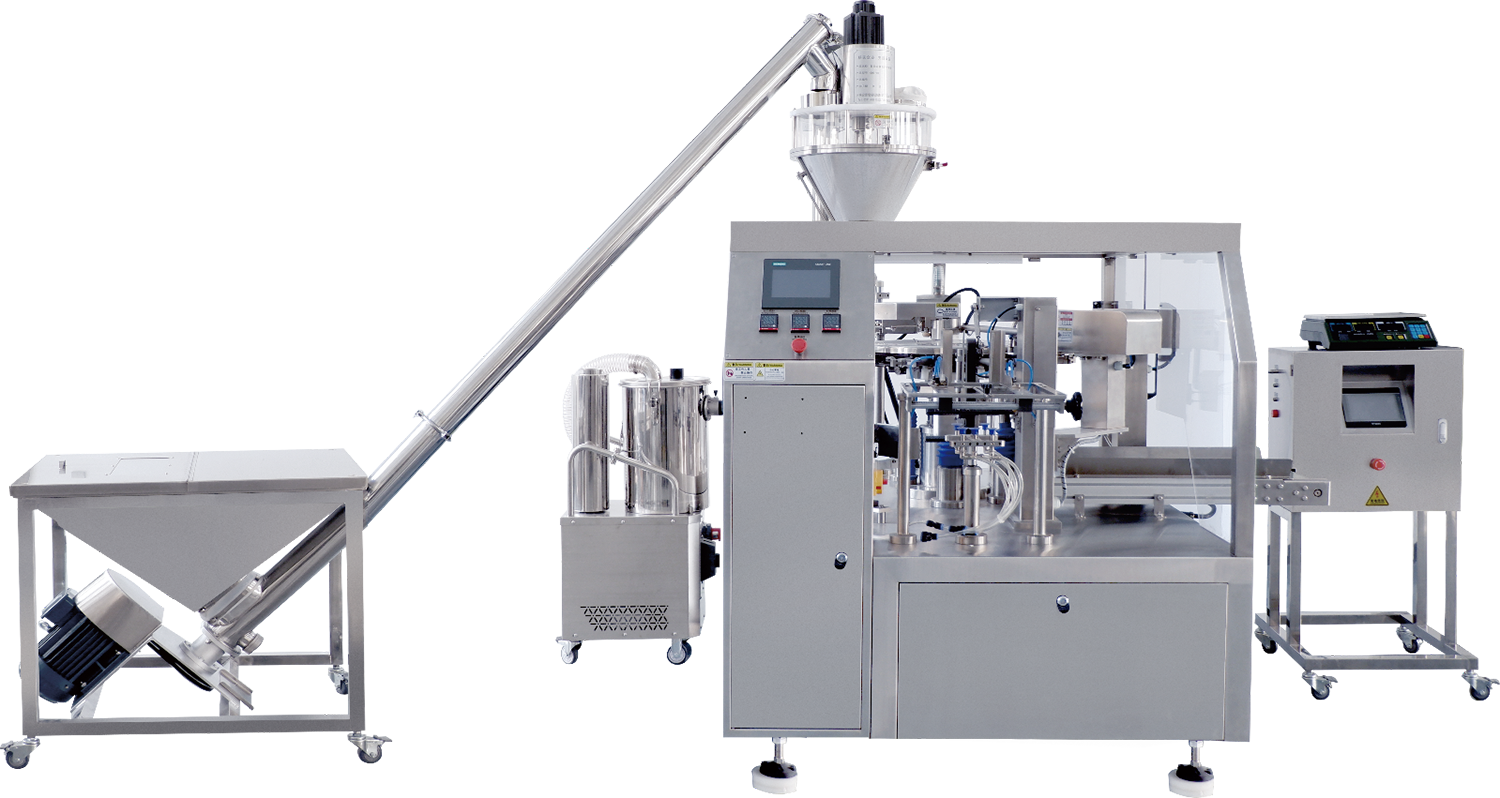

Structure Diagram
Dimension Diagram
Additional Accessories

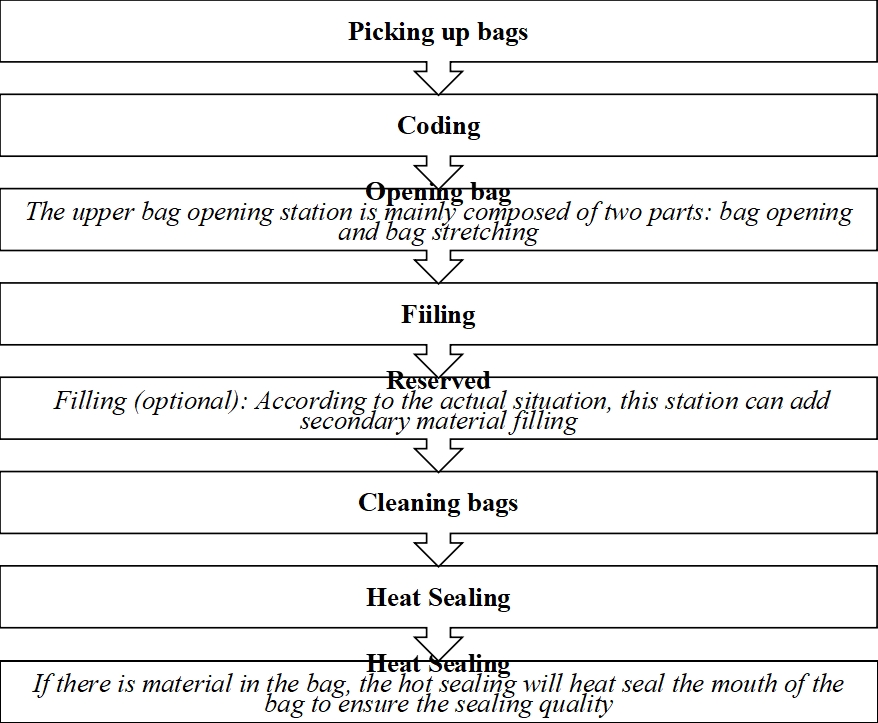

Working Process:
Main Accessories:
No. | Name | Model | Brand | Origin |
1 | Touch Screen | SMART 700 IEV3 | Siemens | German |
2 | PLC | SIMATIC S7-200 SMART | Siemens | German |
3 | Frequency Converter | FRN0005C2S-4C | FUJI | Japan |
4 | Main Motor | YE2-90S-4 | XINLING | China |
5 | Splitter | DS83-6L-120 | ZHONGLI | China |
6 | Solenoid Valve | SY5120 | AirTAC | Taiwan |
7 | Picking up Cylinder | C85N16-20 | SMC | Japan |
8 | Heat Sealing Cylinder | ACQ50X30B | AirTAC | Taiwan |
9 | Lower Vibration Cylinder | MG32X75 | AirTAC | Taiwan |
10 | Blow Valve | VQ21A1-5G-C8 | SMC | Japan |
11 | Lower Bag Opening Cylinder | HFT16X80S | AirTAC | Taiwan |
12 | Barrel Cylinder | MG32X75 | AirTAC | Taiwan |
13 | Vacuum Valve | VUVS-L30-M32C | FESTO | German |
14 | Vacuum Filter | AF2000-WZ148A | AirTAC | Taiwan |
15 | Barometer | DPSN1-10020 | AirTAC | Taiwan |
16 | Proximity Sensor | TL-W5MC1 | Omron | Japan |
17 | Conveyor Motor | 5RK90GN-C | MAILI | China |
18 | Temperature Controller | NBG-3400V | AISET | China |
19 | Linear Bearings | / | IGUS | German |
20 | Hopper Cylinder | MA25X25SCA | AirTAC | Taiwan |
21 | Air Source Combination | GFR30008AN | AirTAC | Taiwan |
22 | Proximity Switches | PRE-12-4DN | Autonics | Korea |
23 | Encoder | E40S-360-3-N-E | Autonics | Korea |
24 | Phase Sequence | KBDS | Omron | Japan |
25 | AC Contactor | SC-E04P | FUJI | Japan |
26 | Air Switch | BC63E1CG C16 | FUJI | Japan |
27 | Relay | MY2NJ（DC24V） | Omron | Japan |
28 | Power Switch | MPS-050W24VFS | Miboi | Taiwan |
29 | Zipper Bag Cylinder | MI12X10CA | AirTAC | Taiwan |
30 | Motor | 57BYG250D1 | AirTAC | Taiwan |

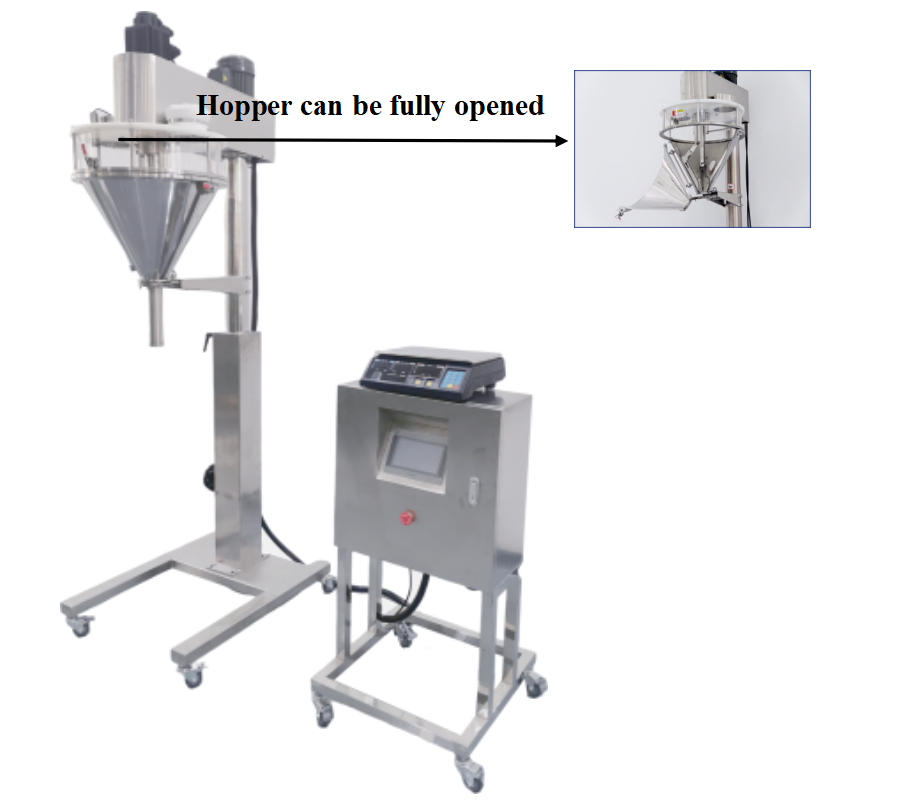

Powder Filling Head
Summary
The machine is mainly used with the automatic bag packing machine, suitable for all kinds of powder, such as milk powder, flour, coffee powder, condiments, additives, pesticides, fertilizers, chemical supplies and so on.
Vacuuming device and leak-proof device can be added. Avoid some special materials leakage and dust phenomenon. Reduce dust and prevent dripping. The machine can be raised and lowered, and it is convenient to adjust the level of the feeding mouth with the bag packing machine.
Feature
1. Accurate packaging: Adopting high quality screw and PLC control system, weighing is stable and accurate.
2. Easy to clean: The hopper can be fully opened , which is easy to clean.
3. No Dust: Close bag clamping device can connect to the dust cleaner.
4. Convenient installation: Full quick-release clamp connection.
5. Transparent silo: The material operation status is clear at a glance.
6. Stable structure: high-precision processing, perfect mechanical structure, highly concentric components (motor, long shaft, silo, screw, material cup, etc.), high machine operation efficiency, less wear, greatly reducing the failure rate of screw non-concentricity.
7. No leakage: There is a synchronous stirring function, which can solve a large part of the leakage problem of dry, loose and fine materials.
8. Easy maintenance and repair: The silo can be fully opened, and the internal components of the silo are clearly visible:
1) Convenient to adjust the relative position between agitator and screw.
2) Convenient to maintain and repair each component.
9. Simple operation: Equipped with an electronic touch screen, parameters can be set directly
10. Easy to move: equipped with universal wheels.
Technical parameters
Center distance | 500mm |
Voltage | AC380V |
Power | 1.5kw |
Weight | 180kg |
Dimension(L×W×H) | 700×900×2250mm |
1) Packing Weight is calculated by flour, it depends on materials.
2) Packing Speed is calculated by flour, it depends on materials and weight.

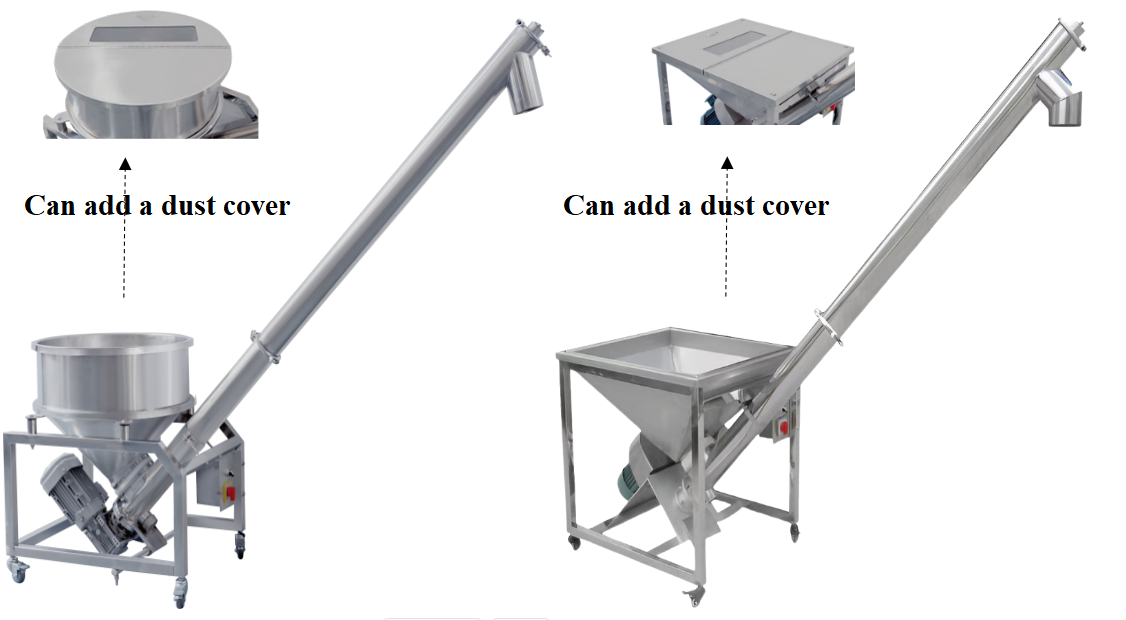

Auger Feeding Machine
Feature
1. Adjustable transport capacity: The feeding port is equipped with an adjustable gate to control the flow of feeding.
2. Prevent material bridging: The silo wall is equipped with a vibration motor.
3. Convenient cleaning: There is a forward and reversal switch. Turn on the reversal switch to clean and forward switch to feed.
4. Convenient disassembly and installation: Full quick-install connection, no tools are required to thoroughly clean the residual material; silicone connection between the silo and the material tube; the barrel can be disassembled into two sections.
5. No powder jamming: The bearing adopts a unique sealing method, no powder is fed in, and no overflow is allowed.
6. Automatic work: It can be automatically controlled by the matching filling machine without manual intervention.
7. Good quality: All stainless steel, corrosion-resistant, auger blades are 3mm thick and not easy to deform.
8. Movable: Install universal wheels with brakes, easy to move, no noise.
Technical parameters
Silo type | Round | Square |
Transport capacity | 1000-3000kg/h | |
Power | AC380V 2KW | |
Weight | 150kg | |
Feeding Height | 2300mm | |
Feeding Tube | 108mm | |
Hopper height | 865mm | 840mm |
Dimensions(L×W×H) | 2616×700×2600mm | 2680×800×2600mm |
The above are standard sizes, all can be customized

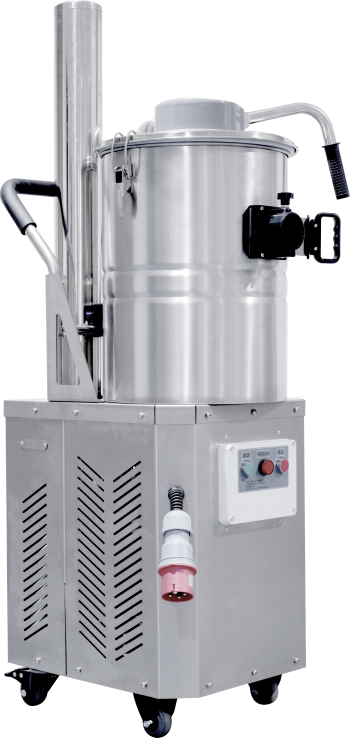

Dust Cleaner
Features:
1) Adopt 304 stainless steel silo.
2) Adopt HEPA high precision filter, the filter is multi-layer.
3) It has protection function to prevent from electricity leakage, phase loss and overload.
4) Equipped with a pressure relief device, it can automatically relieve pressure in the case of high negative pressure (some models).
5) Adopt upper and lower separation barrels for easy loading and unloading.
6) Equipped with silent casters, it is light and fast.
Technical Parameters:
Air Flow | 280m3/h |
Main Filter Area | 15000cm3 |
Power | 1.75kw |
Vacuum | 21kpa |
Voltage | AC380V AC220V |
Inner Diameter | 40mm |
Noise | 64DB/A |
Weight | 75kg |
